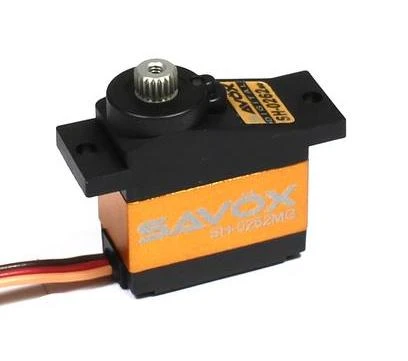

Savox SH-0262MG Super Speed Metal Gear Micro Digital Servo

The Savox SH-0262MG metal-gear, super speed, digital, micro servo is the ultimate fast micro servo.

FEATURES:

• Metal gear train ensures durability and longevity.
• Aluminum middle case allows for cooler operating temperatures.
• Ideal for small planes, and 450 size helicopters.
• Extremely fast speed for immediate response.

SPECIFICATIONS:

• Torque @4.8v – 0.8kg/11.1oz-in
• Torque @6v – 1.2kg/16.7oz-in
• Speed @4.8v – 0.08 sec/60 deg
• Speed @6v – 0.06 sec/60 deg

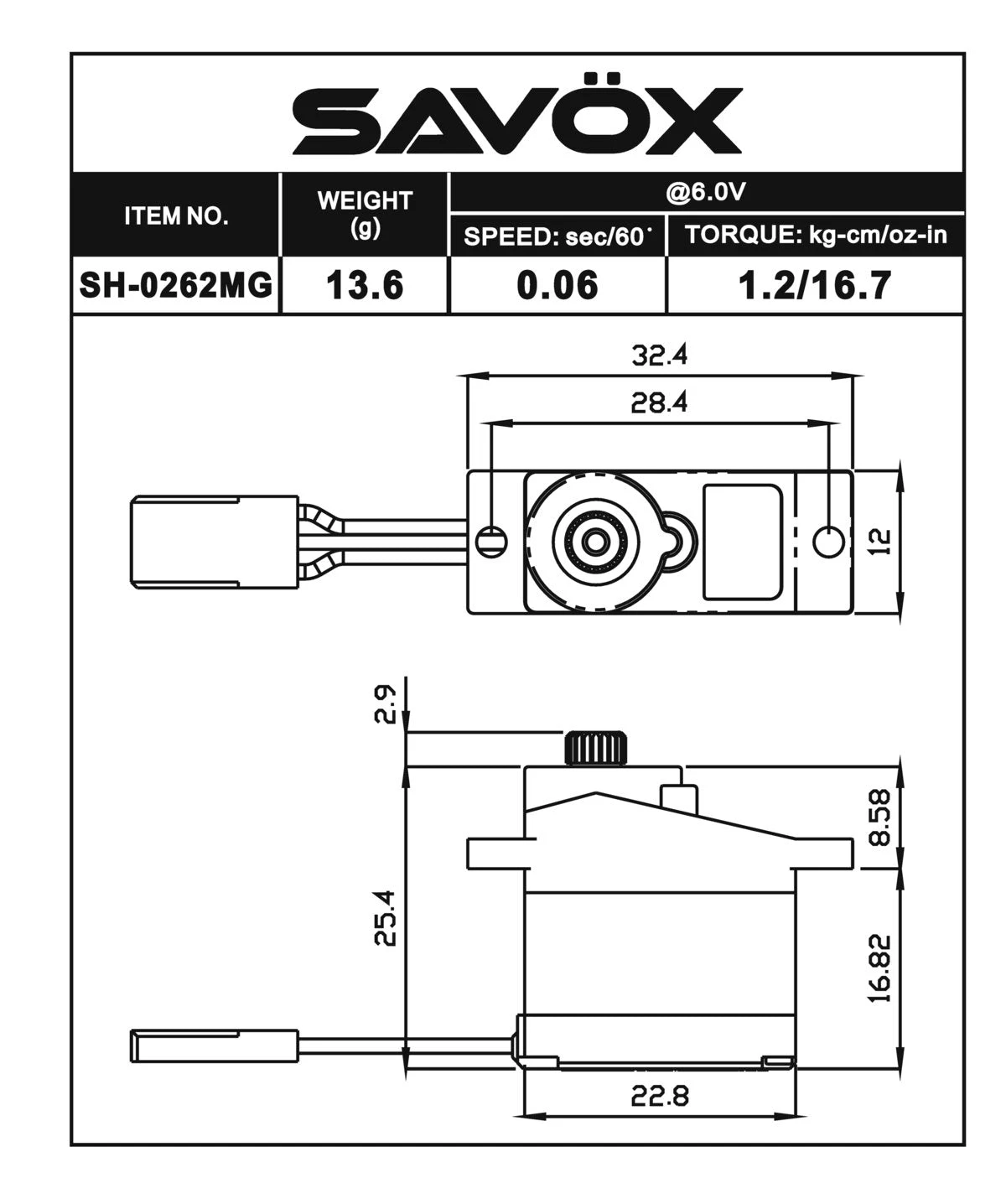

• Dimensions L x W x H (mm):22.8 x 12.0 x 25.4
• Weight: 13.6g

TECHNICAL DETAILS:

• Operating Temperature: 14° – 122°F (-10° – 50°C)
• Running Current (no load): 60mA @4.8V, 80mA @6.0V
• Stall Current (at locked): 480mA @4.8V, 600mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 ± 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 1BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 700 → 2300 µ second
• Maximum Travel: Appx 150° (700 → 2300 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
