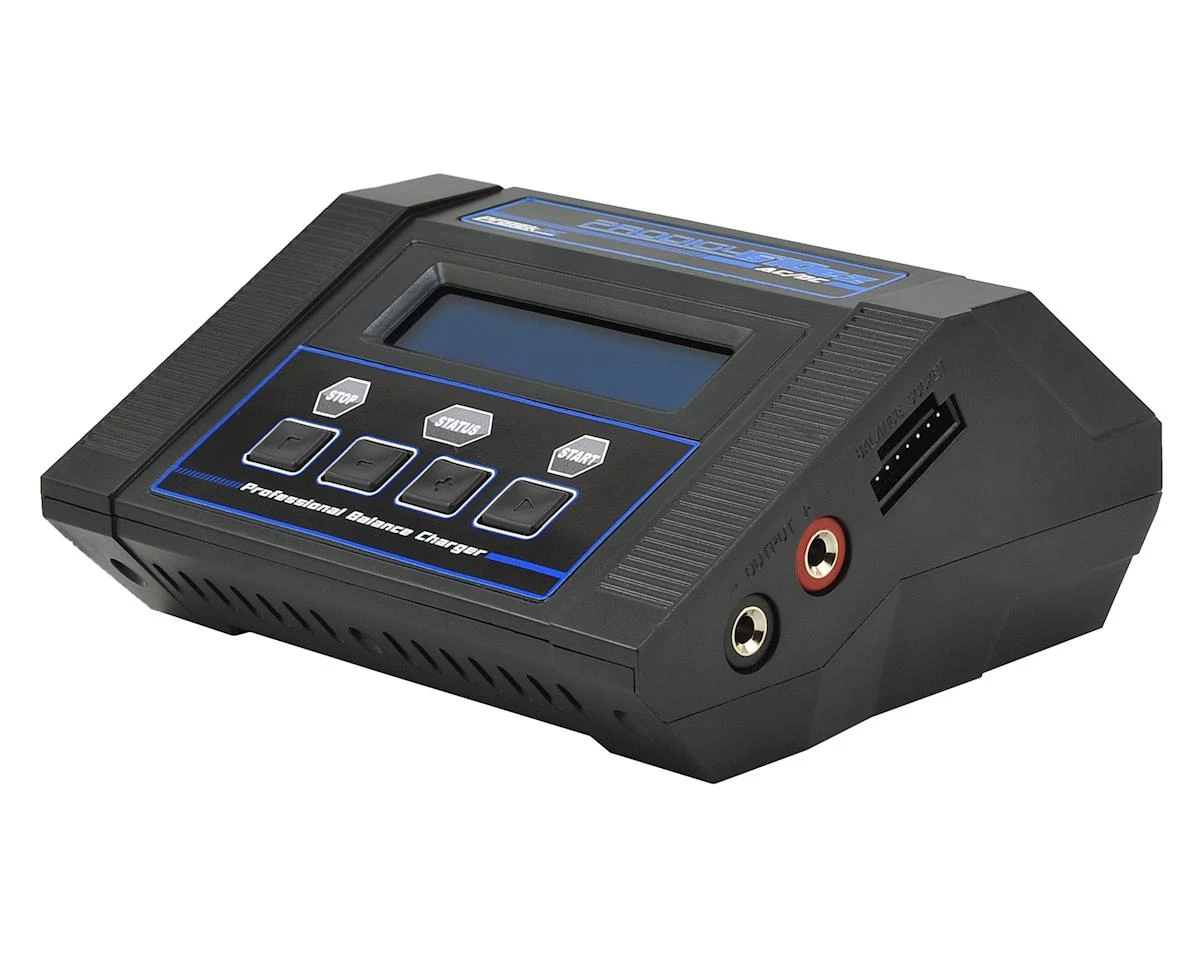

ProTek RC 8522 Prodigy 610ez AC/DC 2-6S 100W RC Battery Charger

The ProTek R/C “Prodigy 610ez AC/DC” LiHV/LiPo/LiFe/NiMH AC/DC Battery Charger is a single port AC/DC charger that can handle 6S packs, is capable of 10 amp charge rates, worldwide 100V/220V voltage versatility, with 100 Watts of power… the next generation of Prodigy has arrived.

This charger features a Hi-Voltage LiHV mode that allows you to safely charge Hi-Voltage LiHV capable batteries. You can adjust the charging end voltage of this mode up to 4.40V per cell, which is considerably higher than 4.20V per cell of an ordinary LiPo battery. Charging at this higher end voltage requires a Hi-Voltage LiHV capable battery, but the power gains are significant to the overall punch and power for the R/C model. But please note: battery voltages exceeding 4.20V per cell is prohibited from sanctioned racing rules, such as ROAR, IFMAR, etc.

The power source can be 11-18V DC input or a 100-240V AC source. With a builtin power supply, users can directly connect the AC power cord to the main AC input. The power supply can accept AC power from all over the world without the worry of damage.

FEATURES:

• Single Channel Digital AC/DC Balance Charger
• Maximum 10A Charge Current, up to 100W
• Hi-Voltage LiHV charging mode allows charging end voltage up to 4.40V
• Supports up to 6S Lithium & 15 Cell Nickel Battery Packs
• Lithium, Nickel & Lead Acid Compatible
• Multiple Safety Functions
• Multiple Charge Modes
• Back-Light Screen
• Small & Lightweight Portable Design
• Measure the Internal Resistance of Battery Pack

SPECIFICATIONS:

• AC Input Voltage: 100V-240V
• DC Input Voltage: 11V-18V
• Chemistry: LiPo, LiFe, LiHV, NiMH, NiCd, Pb
• Cell Count: LiPo/Li-Ion/LiFe/LiHV: 1-6S; NiMH/NiCd: 1-15 cells; Pb: 2-24V
• Voltage Cutoff (per cell): LiPo: 4.18-4.22V; Li-Ion: 4.18-4.20V; LiFe: 3.68-3.8V; LiHV: 4.30-4.40V
• Display: LCD; blue back light (non-touch)
• Dimensions: 130x115x61mm
• Charge Current: 0.1A-10A
• Charge Power: 100W max.
• Balance Current: 400mA/cell
• Cooling System: Fan
• Weight: 380g
• Safety Timer: 1-720min or off
• Discharge Current: 0.1A-2.0A
• Discharge Power: 5W max.
• Memory: 10 different profiles

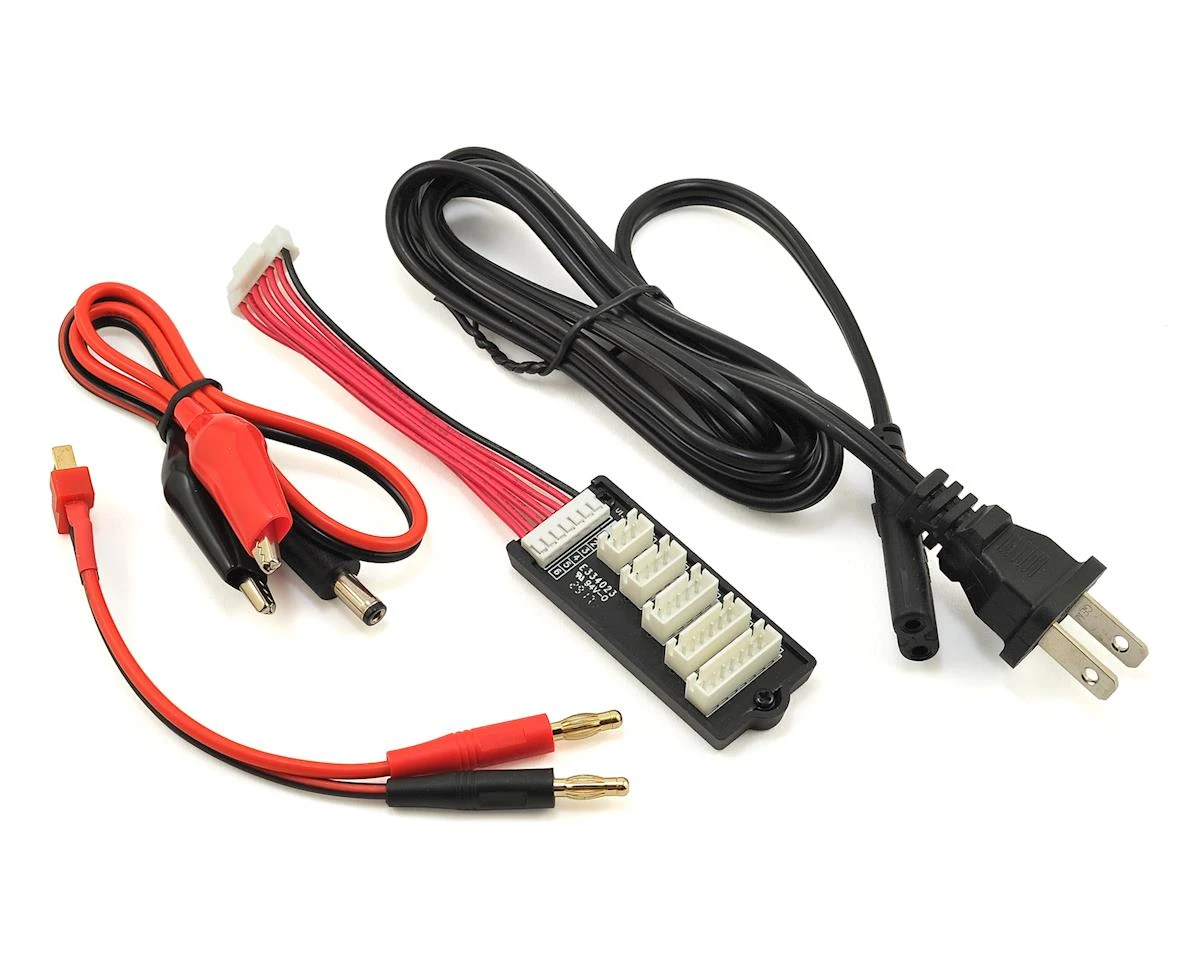

• Includes:
• (1) Prodigy Prodigy 610ez AC/DC Charger
• (1) T-Style Charge Lead
• (1) DC Input Wire
• (1) Balance Board
• (1) Instructions
