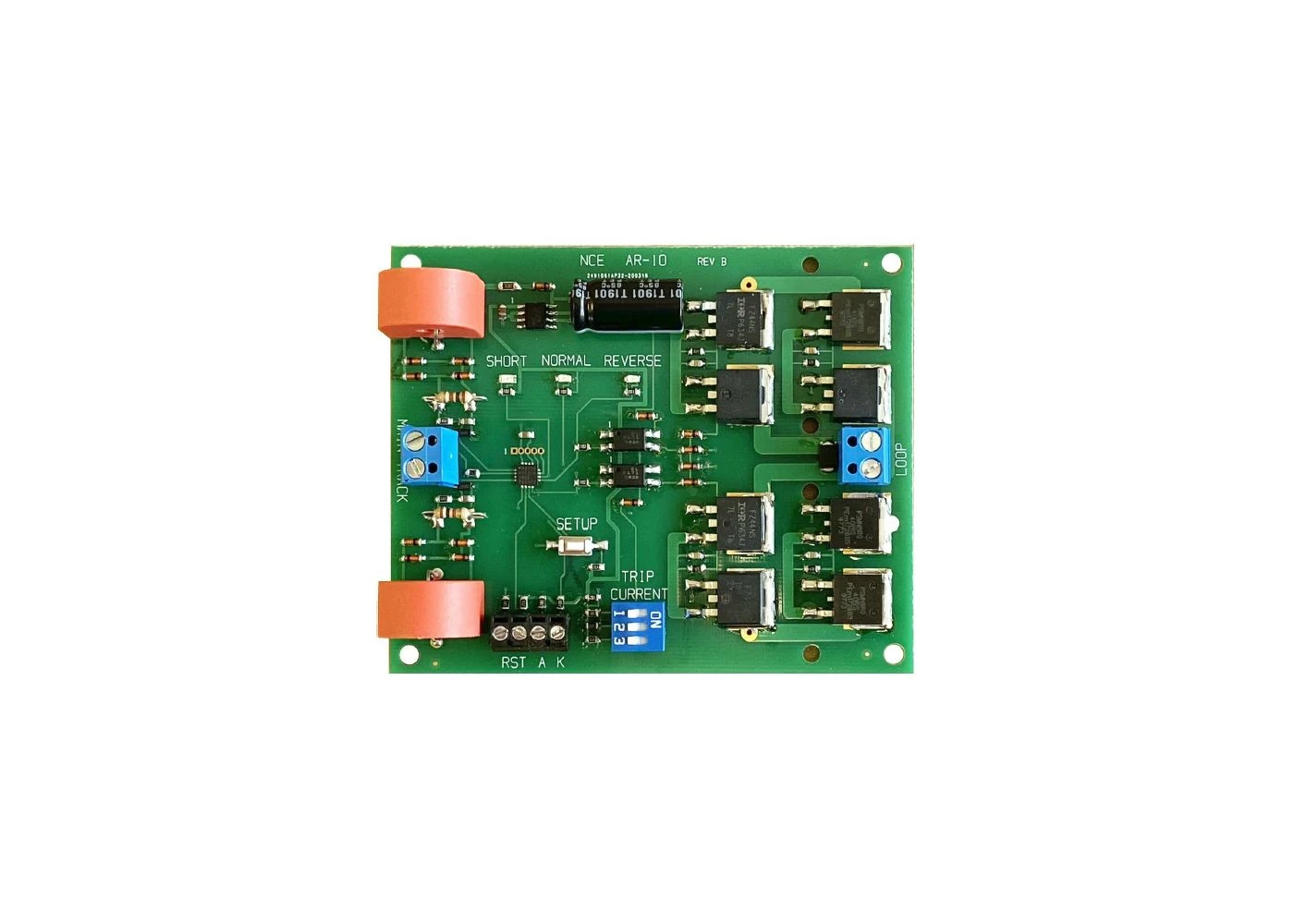

NCE 5240233 AR10 DCC Auto Reverse Module

The AR10 is an automatic reverse loop controller and circuit breaker for DCC layouts.

It requires just 4 connections, two to the main line track power and two to the loop. In addition it functions as a circuit breaker for the reverse loop. Recommended for DCC systems from 1 to 10 Amps. The AR10 will work with any DCC system from any manufacturer and all NCE systems including the Power Cab.

Make sure no other track power devices like circuit breakers or frog juicers are inline before or after the AR. In order for the AR to function correctly it needs to have a direct connection to your main DCC system and the output is directly connected to the AR loop, the loop must be double gapped on both ends and the gaps should be after any switches.

FEATURES:

• Automatically controls polarity of DCC reverse loops
• Provides short circuit protection for loop
• Ready to run without any programming
• Trip current adjustable 1 to 10 Amps
• Easy hookup using screw terminals, no soldering
• Solid state design provides silent, reliable operation
• Status indication LED
• Additional output for remote LED
• Automatic or manual reset after short circuit shutdown
• Adjustable short circuit response time
