NCE 5240151 Switch-8 MK2 will control 8 Tortoise Switch Machines

Accessory DCC Decoder

The Switch-8 MK2 is all new with easy programming no jumpers are required, and on board display.

FEATURES:

• Control for 8 Tortoise switch machines
• Remembers the position of switch during power outages
• Supports the full range of DCC accessory addresses (1-2044)
• Easy address programming, no need to connect it to programming track

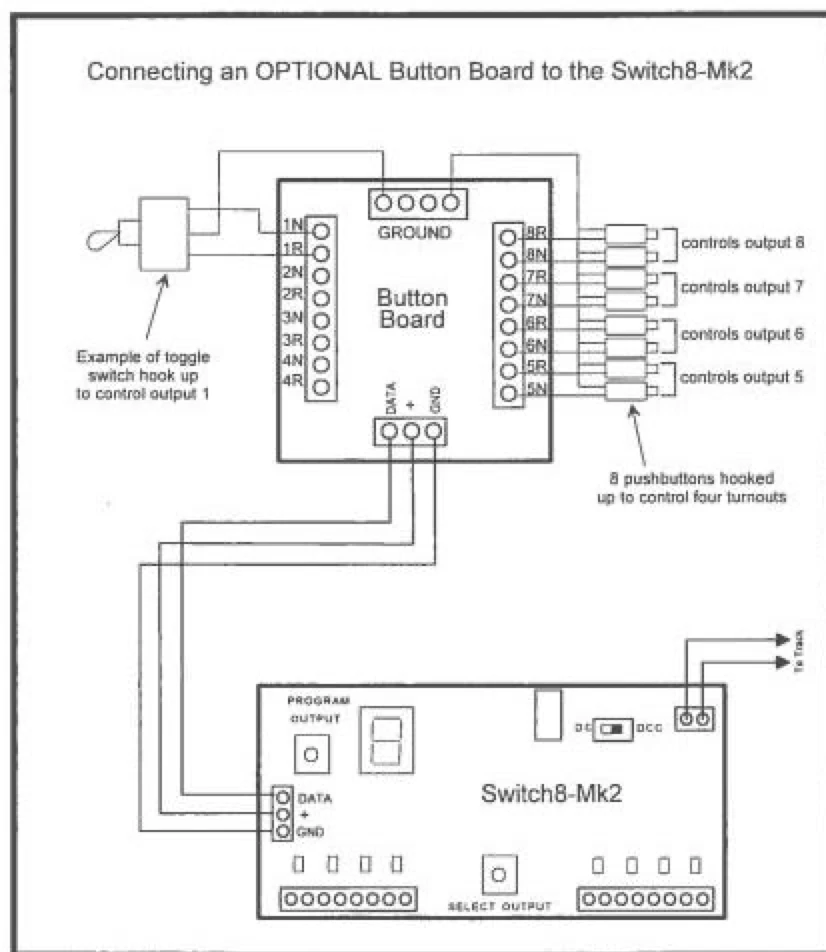

• Push button connections for local control panel operation

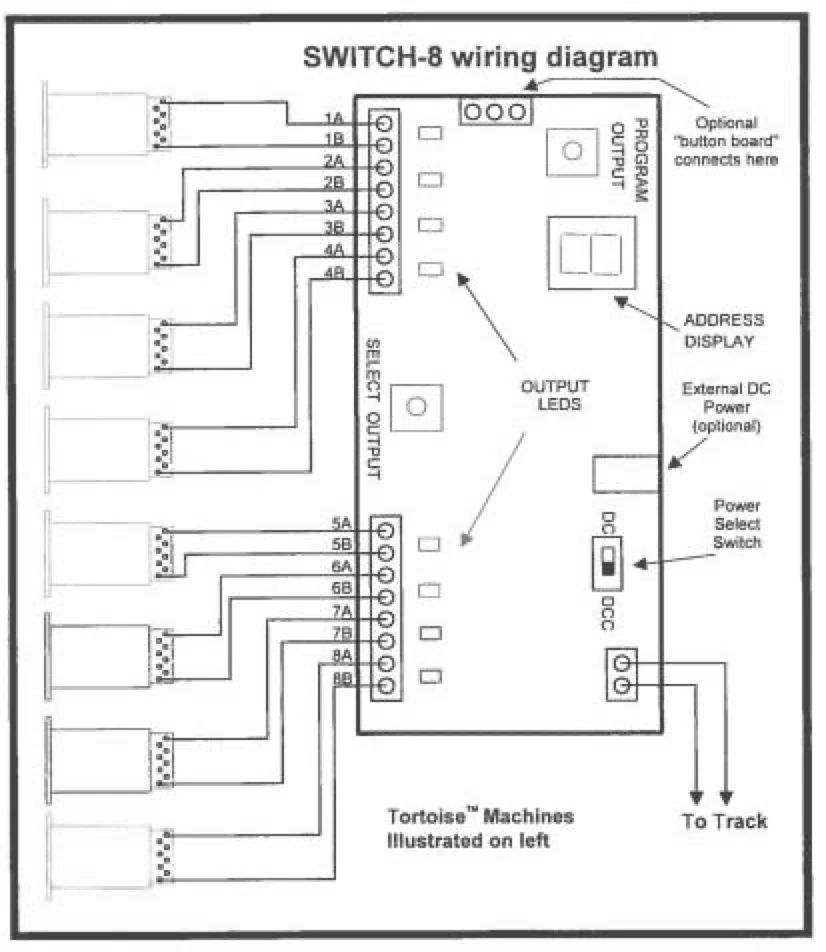

• Simple hook up, 2 wires to the track, 2 wires to each switch machine
• FOR STALL MOTOR MACHINES ONLY, NOT FOR USE WITH TWIN COIL (Atlas Type) SWITCH MACHINES
