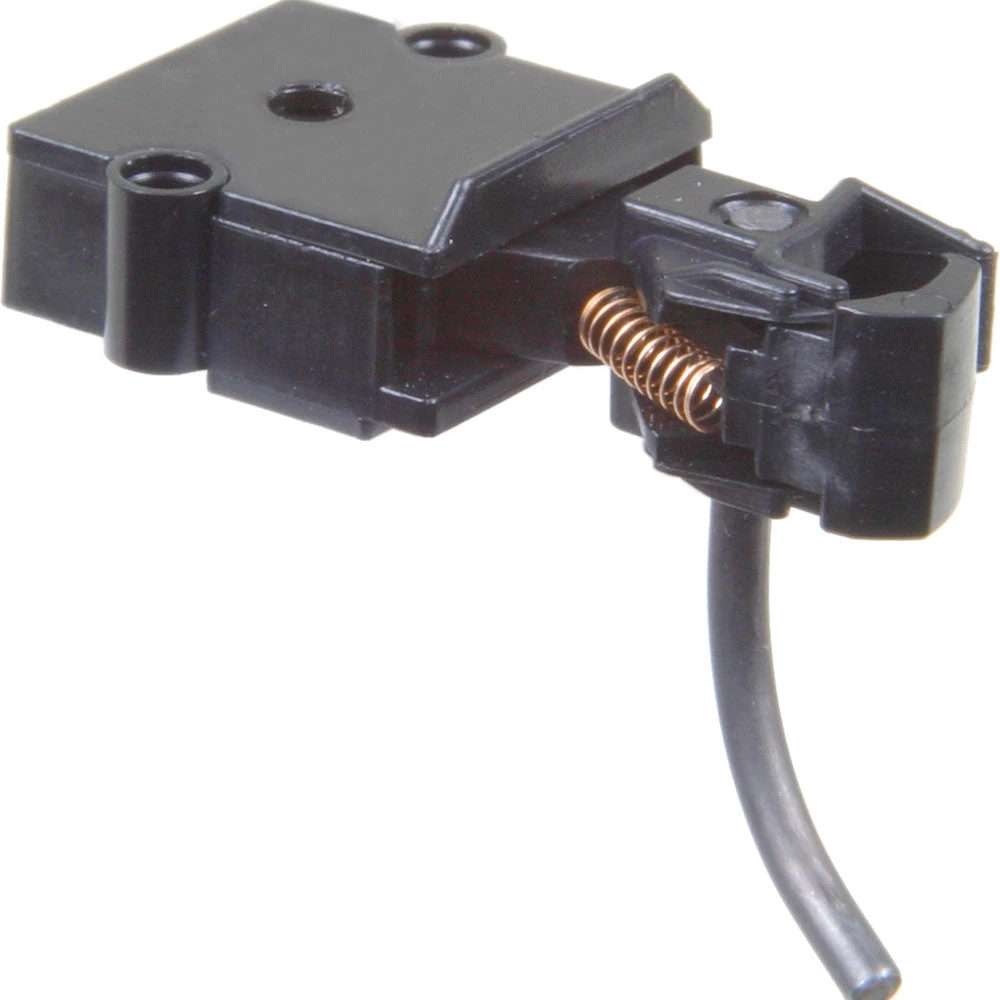

Kadee O Scale 806 Short Plastic Couplers with Plastic Short Gearboxes – Black
This industry leading coupler features Original Style Head Short Centerset Plastic Couplers, and #850 O Scale centering spring and comes complete with Short Plastic Gearboxes and lids. The #743 Metal Coupler may be mounted with the included Short Plastic Gearbox (#806 type).
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
- One pair per package
- UPC: 765484008064
- USA Flag Made in the U.S.A.
O-Scale
- Simple Drop in Design
- Trouble Free Operation
- Compatible with All Kadee® O-Scale Couplers
- World-Renowned Quality & Performance
- They just Last & Last & Last…
Package Includes:
- (2) Each #806 Original Style Plastic Couplers – Short Centerset Shank
- (2) Each Short Plastic Gearboxes & lids (#806 type)
- (3) Each #850 O Scale Centering Springs
#806 Plastic Coupler Features:
- Material – Plastic
- Shank Length – Short (47/64″) (Knuckle pulling face to center hole of Draft Gearbox)
- Coupler Offset – Centerset
- Centering Spring – #850 O Scale Centering Springs
- Knuckle Spring – #845 O Scale Knuckle Springs
- Head – Original Style Head
- Works In Place of – #743 O Scale Short Centerset Shank Couplers
- Works With – #806 type Draft Gearboxes

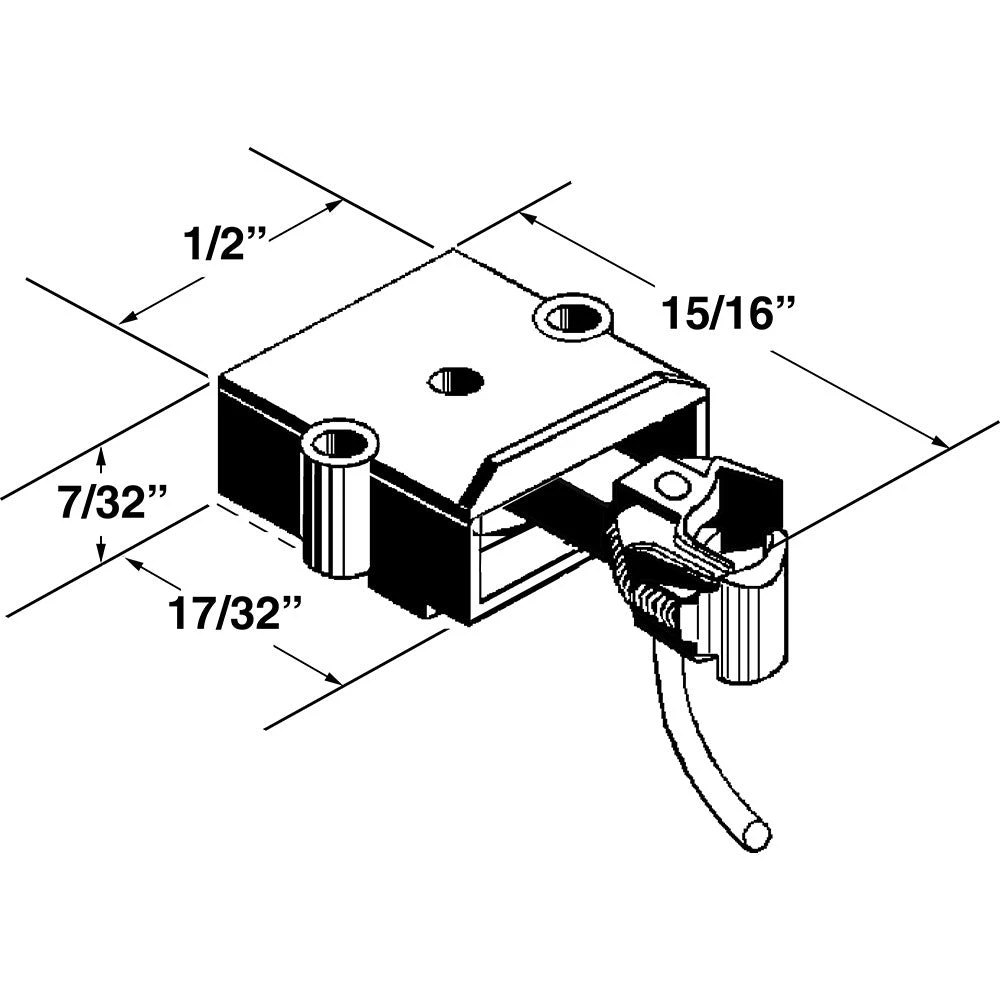

Plastic Short Draft Gearboxes & Lids Features (#806 type):
- Material – Plastic
- Dimensions – 17/32″L x 1/2″W x 7/32″H
- Works With – #743, & #806 Couplers

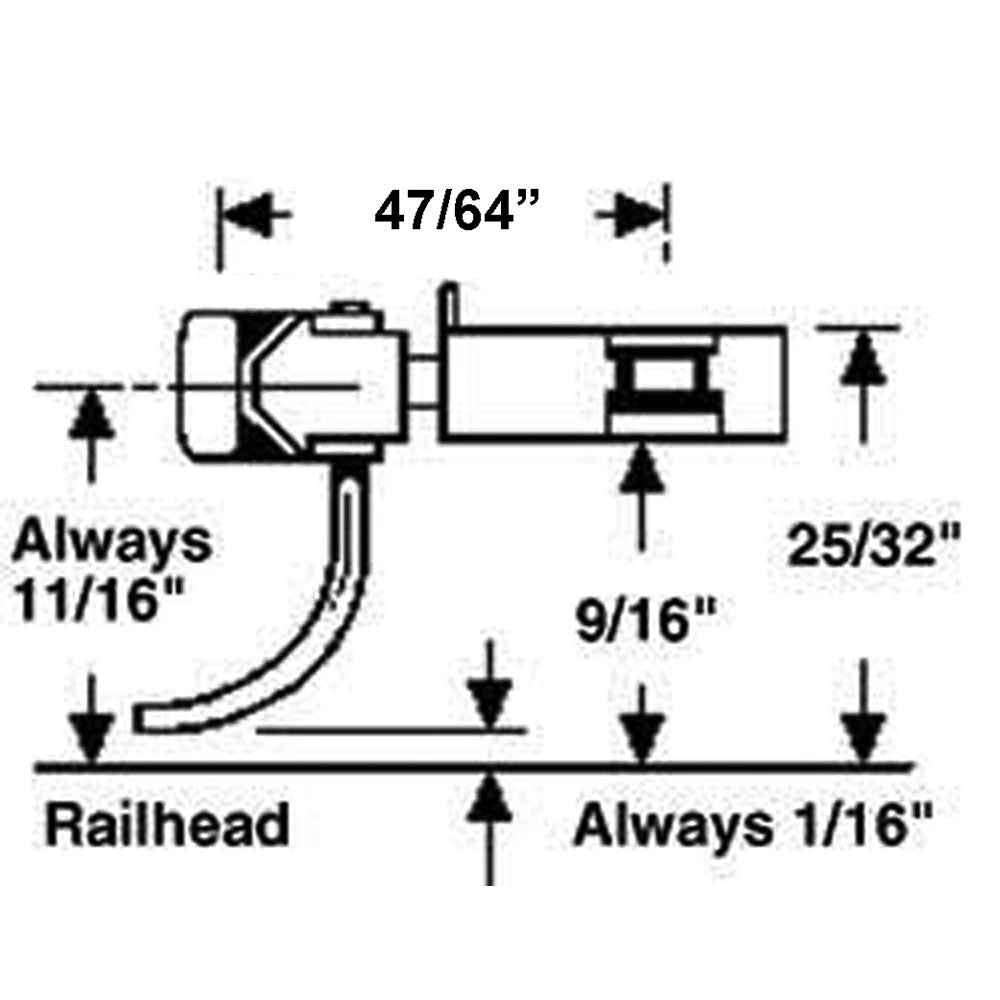

Mounting Specifications:
- Mounting Height – 25/32″
- Centerline – 1 1/16″
- Trip Pin Height – 1/16″
- Mounting Holes – 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
