Kadee HO Scalen3 #714 Couplers (Acetal)

HOn3 Coupler for locomotives and rolling stock.

This Kadee® Coupler features “Delayed Action” coupling.

Metal Wheelsets Offer Exceptional Realism and Reliability

The #713 & #714 Split Shank Plastic Coupler will work anywhere a #705 Metal Coupler will work.

This industry leading coupler features a plastic coupler and coil centering spring and comes complete with a insulated draft gearbox and lid. The #714 Magne-Matic® Split Shank Couplers may be body mounted on any flat surface; HOn3-Scale locomotives or rolling stock.

(The #702 Coupler Assembly Fixture can be used to ease assembly)

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Features:

• Also adaptable to TT-Scale
• Unassembled Kit
• Black colored
• Two pair per package
• UPC: 765484007142
• HOn3-Scale
• 0-48 or 0-80 screws are the most commonly used screws.
• Screw length will very depending on the mounting situation.

Package Includes:

• (2) Pair Unassembled Split Shank Couplers
• (2) Pair Unassembled Gearboxes & Lids
• (5) Each #714 Trip Pins
• (6) Each #636 Centering Springs
• (4) Each #402 Self Tapping Screws 0-48 x 1/4″

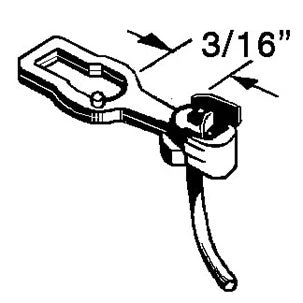

#714 Split Shank Coupler Features:

• Material – Plastic
• Shank Length – (3/16″)
• Coupler Offset – Centers

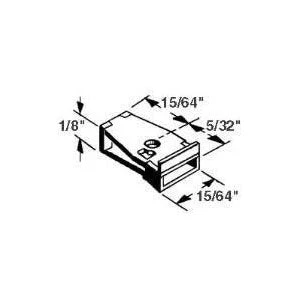

#714 Gearbox Features:

• Material – Insulated Plastic
• Dimensions – 27/64″L x 15/64″W x 1/8″H

Mounting Specifications:

• Mounting Height – 11/32″
• Centerline – 9/32″
• Trip Pin Height – 1/32″
• Center Hole – 0-48 Screw. (Screw length will vary) no less then 1/4″ length.
