Kadee 740 O Scale Type E Medium Centerset Metal Couplers with Plastic Gear Boxes

This industry leading coupler features New Generation AAR Type “E” “Prototype” Head Medium Centerset Metal Couplers, and #850 O Scale centering spring and comes complete with Metal Gearboxes and lids. The #740 Metal Coupler may be mounted with the included #818 Metal Gearbox or #817 Plastic Gearbox (sold seperatly), #819 Extended Metal Gearbox (sold seperatly).

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use a insulated #817 Gearbox or the #745 Type E Medium Centerset Metal Couplers that includes the insulated #817 Gearbox.

• Two pair per package
• UPC: 765484007401
• USA Flag Made in the U.S.A.
• O-Scale

New Generation AAR Type “E” “Prototype” Head:

• Simple Drop in Design
• Trouble Free Operation
• Hidden Knuckle Spring
• AAR Type “E” Coupler Style
• Compatible with Kadee® O-Scale Couplers
• World-Renowned Quality & Performance
• They just Last & Last & Last…

Package Includes:

• (4) Each #740 Type “E” “Prototype” Metal Couplers – Medium Centerset Shank

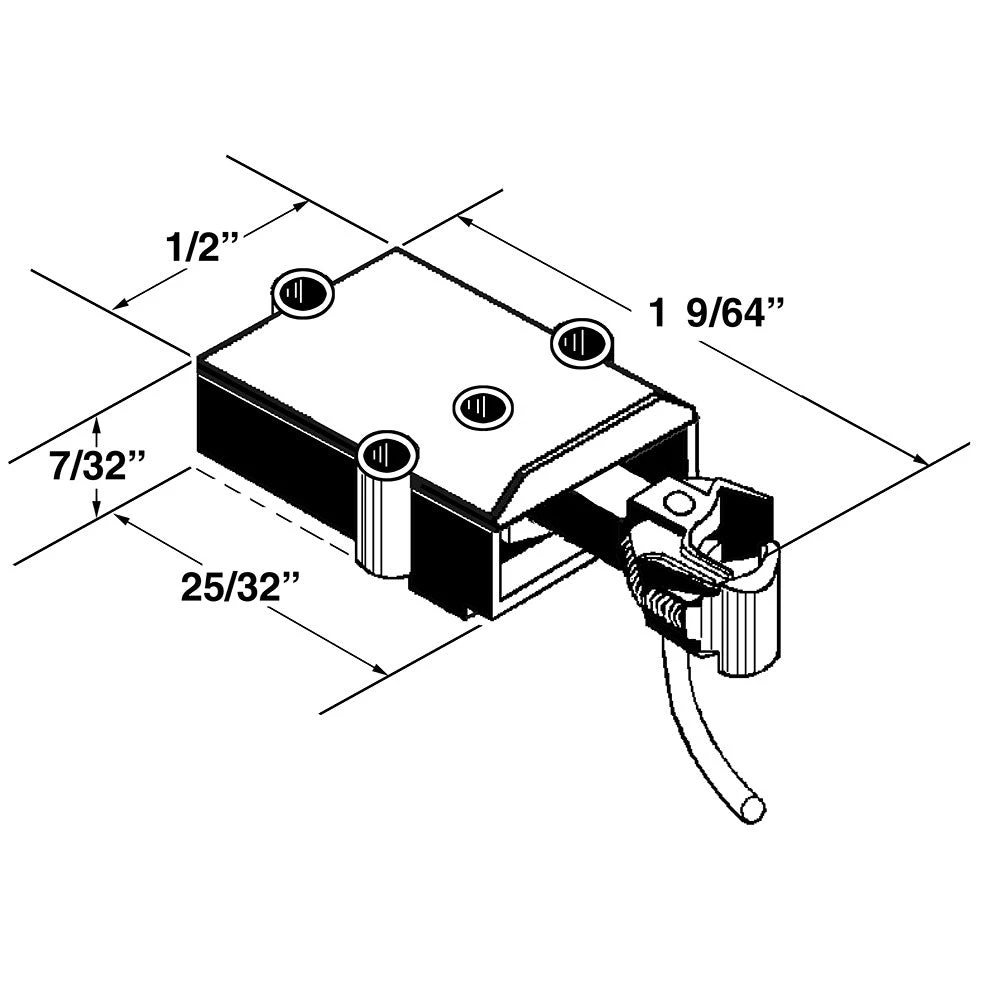

• (4) Each #818 Metal Gearboxes & lids
• (5) Each #850 O Scale Centering Springs

#740 Metal Coupler Features:

• Material – Metal

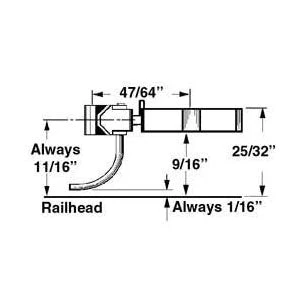

• Shank Length – Medium (47/64″) (Knuckle pulling face to center hole of Draft Gearbox)
• Coupler Offset – Centerset
• Centering Spring – #850 O Scale Centering Springs
• Head – New Generation AAR Type “E” “Prototype” Head
• Works In Place of – #745, #800, #801, #804, #805, & #816 O Scale Medium Centerset Shank Couplers
• Works With – #817, #818, #819 Draft Gearboxes
