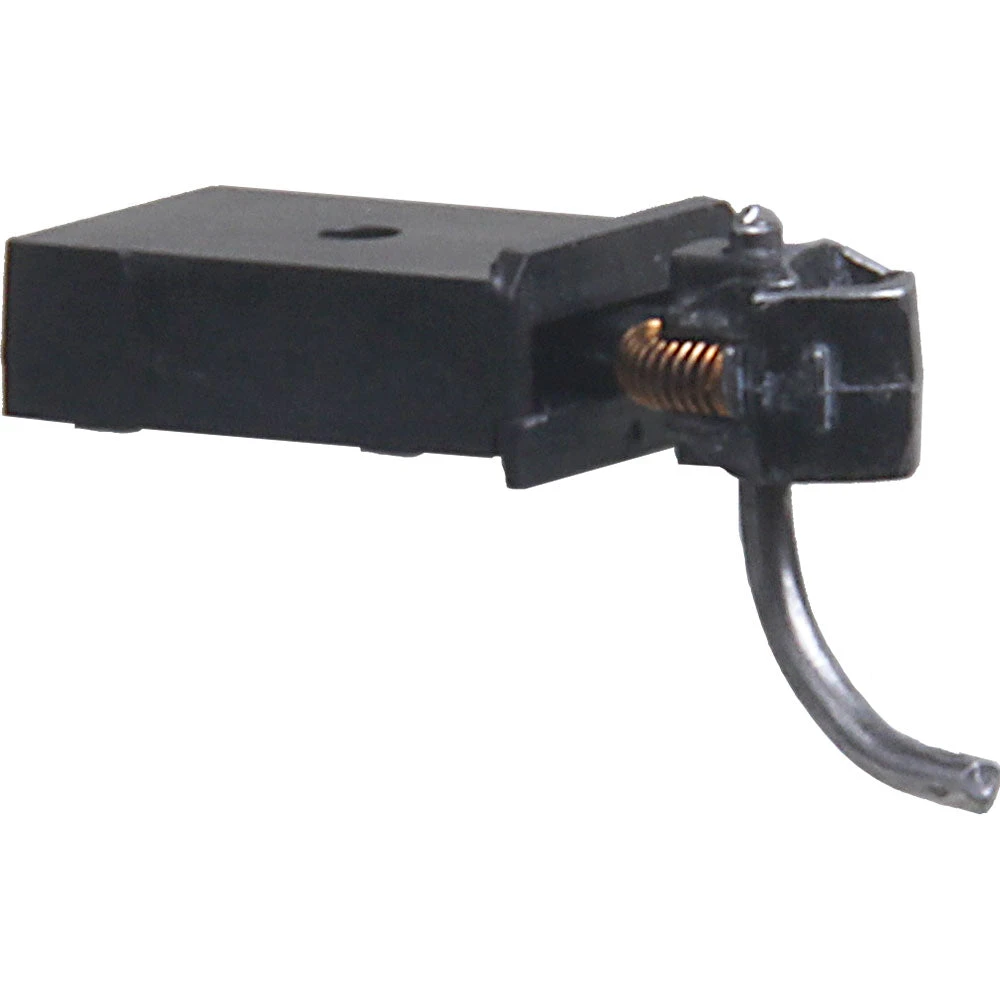

Kadee #705 HOn3 Assembled Metal Couplers

The #705 Metal Coupler will work anywhere a #713 or #714 Coupler will work.

This industry leading coupler features an all metal coupler head, shank, and centering spring and comes assembled complete with insulated draft gearbox and lid. The #705 Metal Coupler may be body mounted on any flat surface; HOn3-Scale locomotives or rolling stock.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

• Fully Assembled – Not Recommended to be Disassembled.
• Also adaptable to TT-Scale
• #705 Coupler Instructions
• Two pair per package
• UPC: 765484007050
• Patent numbers 5,316,158
• HOn3-Scale

Package Includes:

• (2) Pair Assembled #705 Metal Couplers in #705 Gearboxes
• (2) Pair 00-90 x 3/16″

#705 Metal Coupler Features:

• Material – Metal
• Shank Length – Medium (7/32″) (center hole to back of coupler head)
• Coupler Offset – Centerset
• Head – Scale Head

#705 Snap-Together Gearbox Features:

• Material – Insulated Plastic
• Lid Type – Snap-Together

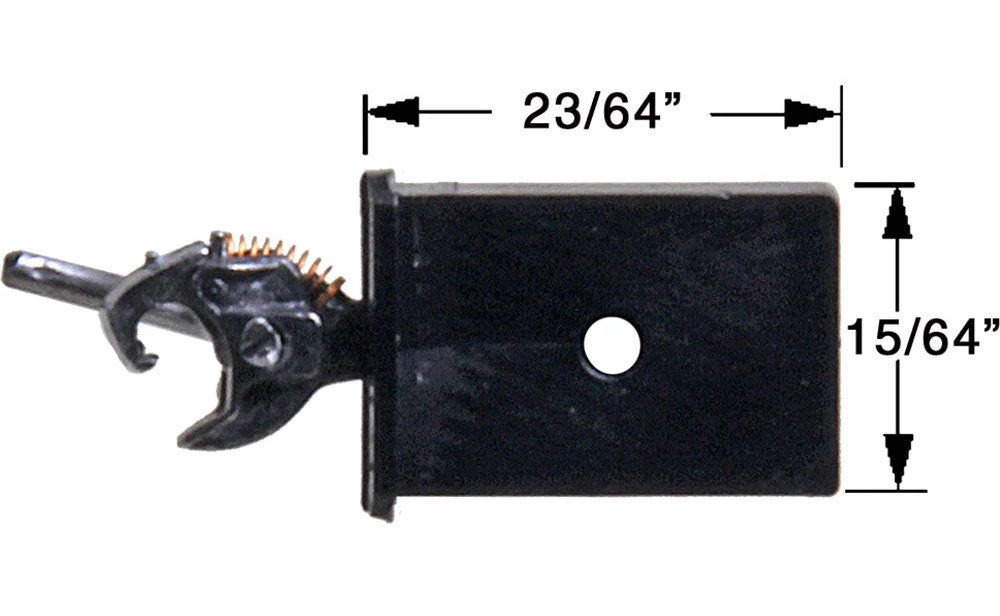

• Dimensions – 23/64″L x 15/64″W x 7/64″H

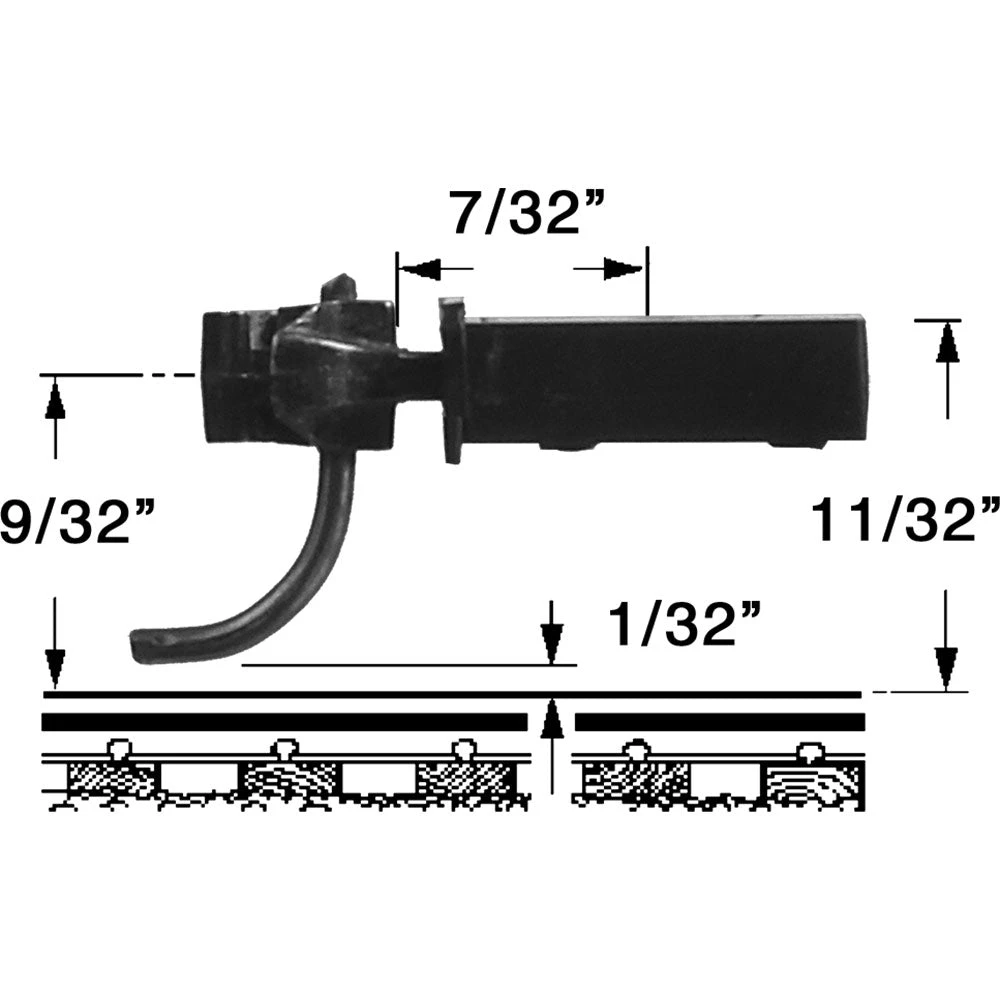

Mounting Specifications:

• Mounting Height – 11/32″
• Centerline – 9/32″
• Trip Pin Height – 1/32″
• Center Hole – 00-90 Screw. (Screw length will vary) no less then 3/16 length.
