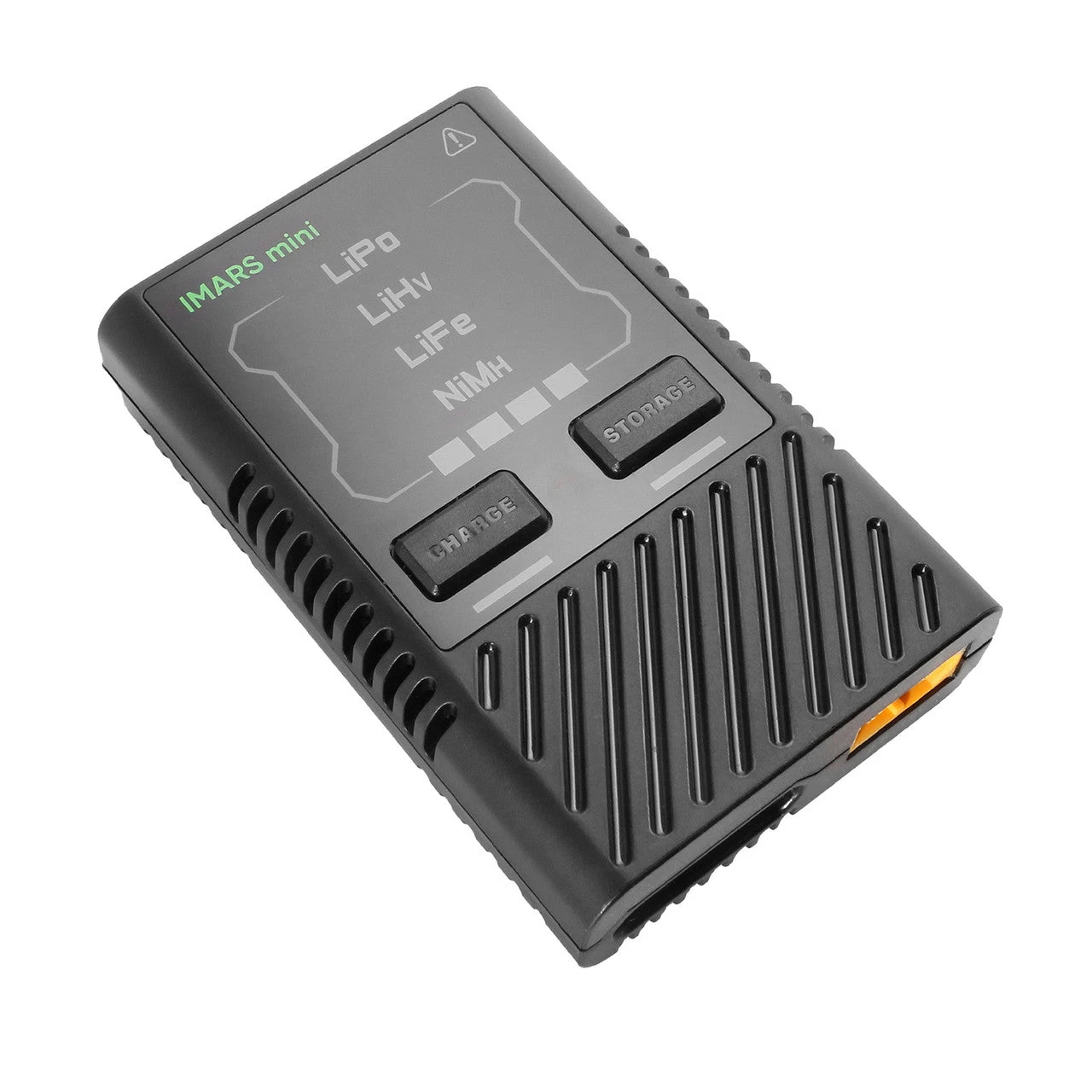

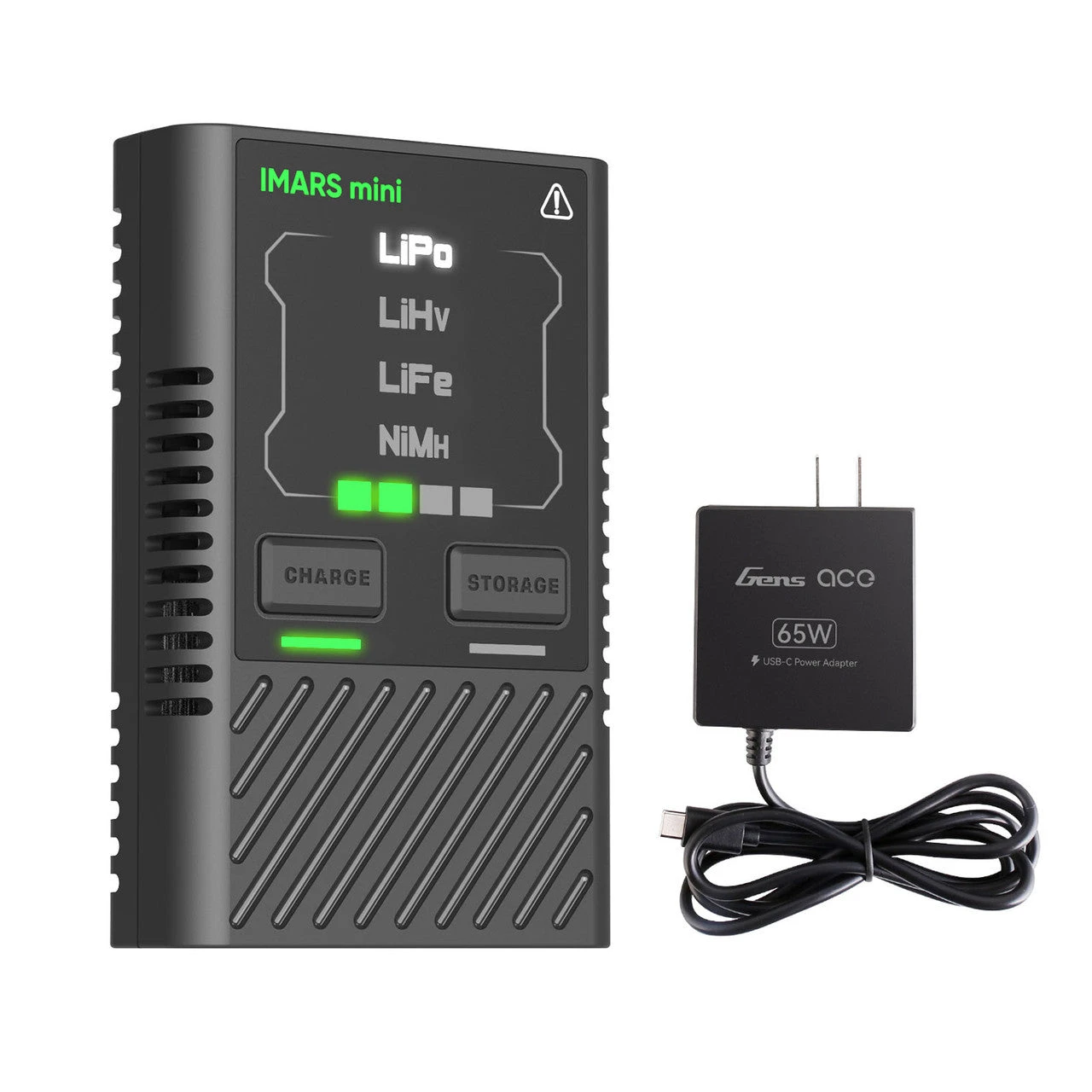

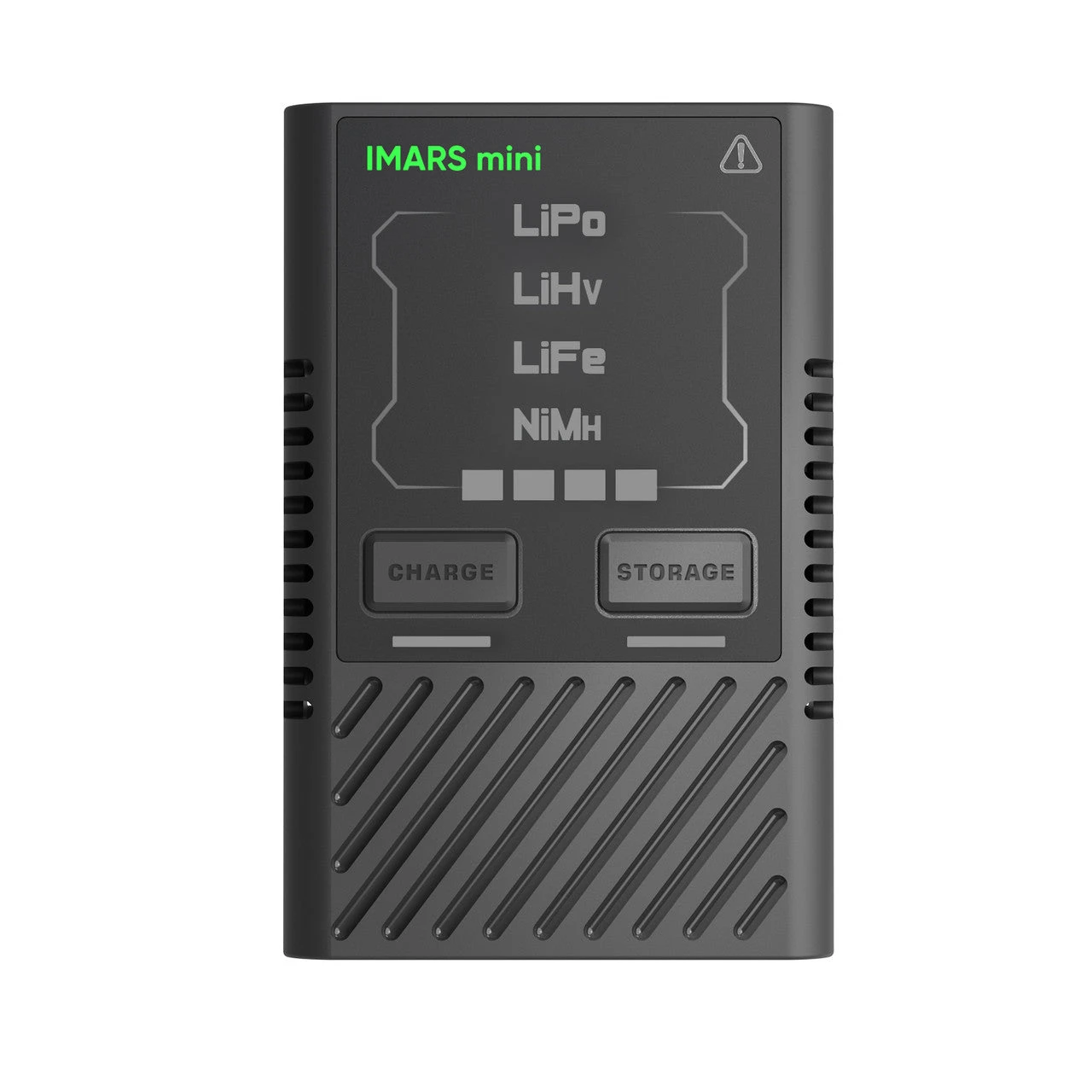

Gens ace Imars Mini 2-4S 60W RC Battery Balance Charger

The Gens ace Imars Mini Charger is an Intelligent Charger designed for the Gens ace G-Tech smart battery, which is also compatible with non-smart batteries.

It is the first member of the Gens ace G-Tech Smart Eco, when the Gens ace G-Tech battery is connected to the Imars Mini charger, the charger will automatically identify the battery type, voltage through the smart balance connector, and charging current recommended by the battery manufacturer. The charger will start charging in 5 seconds automatically after G-Tech smart battery is connected.

For non-smart batteries, it’s necessary to manually select the battery type and the required working mode to get it started. The charger can intelligently adjust the charging current according to the charging voltage flow of the battery.

FEATURES:

• Charges 2-4S LiPo, LiHV, LiFe, and 2-12S NiMH batteries.
• Intelligently recognizes G-Tech smart battery info through an IC chip for safe and easy charging.
• Automatic storage function, it’s the smallest charger with auto storage.
• New interface design and increased balance connector durability.
• Small & lightweight, portable design.

SPECIFICATIONS:

• Max. Charge Power: 60W
• Charge Current:1-5A, Max. 5A(Auto Adjustment)
• Max. Storage Power: 3W discharge, 60W charge
• Input Voltage: 5-20V
• Max. Input Current: DC 3A
• Balance Current: 0.4A/Cell X 2
• Input Port: QC/PD/BC1.2/USB-C V1.4/SDP/CDP/DCP/Apple 5V/2.4A(Does not support 5V/1A adapter input)
• Abnormal Battery Voltage Alarm: Yes
• Supported Battery Types: Lipo/LiHv/LiFe(2~4S), NiMH(2-12S)
• Working Temperature: 0℃~40℃
• Storage Temperature: -20℃~60℃
• Dimension: 85*55*21mm
• Net Weight: Approx. 64g

INCLUDES:

• Imars Mini 60W Smart Charger * 1
• 65W power supply adapter with USB-C cable * 1
• XT60 female to EC3 male adapter *1
• XT60 female to EC5 male adapter *1
• Product Manual *1
